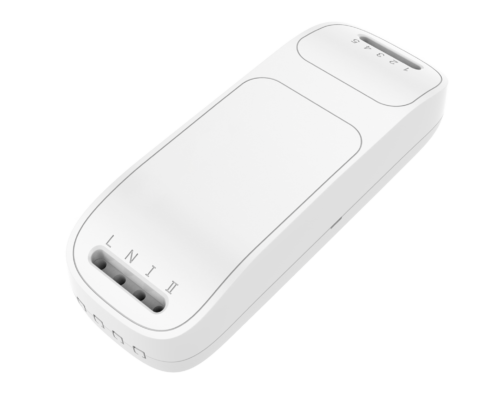

調光控制器コントローラ

P-A-1D1S2AT/P-A-1D1S3AT

The dimming control module has on/off control and 0-10V output function. It is used in conjunction with the dimming power supply, and the dimming speed is configurable. It supports the slow light control, slow light off control or soft switching of the brightness of the dimming lamp.

  • Support remote control
  • Power line communication/support power line online upgrade
  • Uses 0V-10V dimming to achieve 100-level brightness adjustment
  • Status synchronization
  • Operating Voltage: AC 100V~240V
  • Operating Frequency: 50/60Hz
  • Power Consumption: < 0.5W
  • Rated current: 2A/3A
  • Communication: Power Line Communication (PLC)
  • Output 1:AC 100V ~ 240 V
  • Output 2:0-10V/PWM GND
  • Load type:PWM Dimming LED Power Supply
  • Operating Temperature: -10°C ~55°C
  • Operating Humidity: 10%RH ~ 85%RH
  • Dimension(L*W*H): 136.5*50.5*32.5mm
