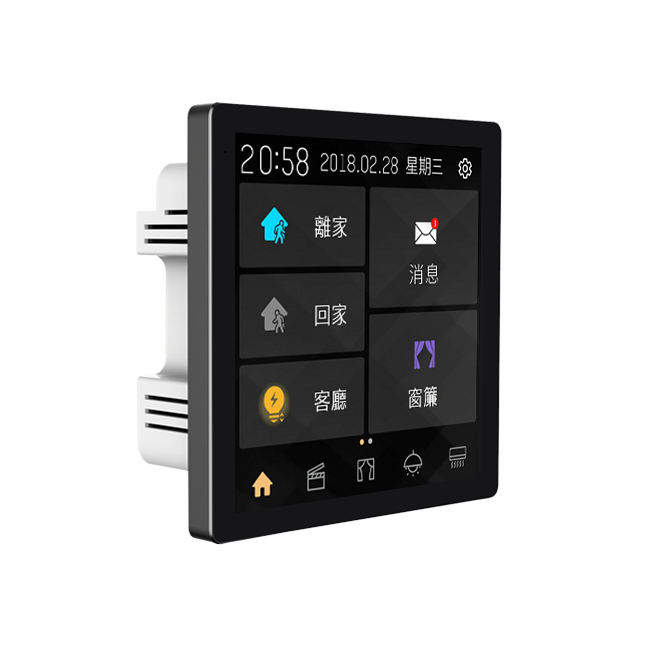

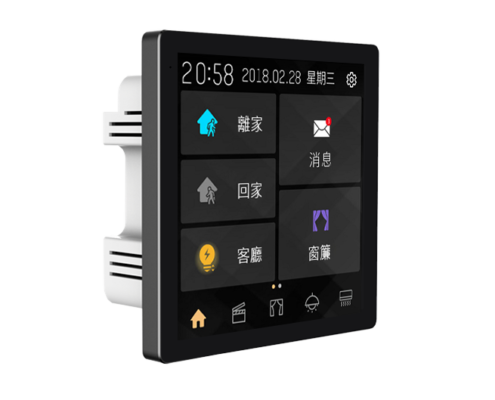

LCD Switch Panel

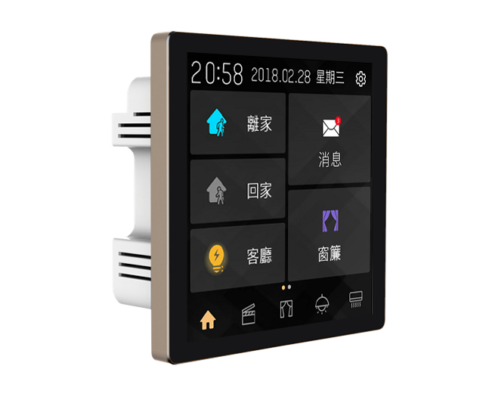

P-D-CTP4-B-CT

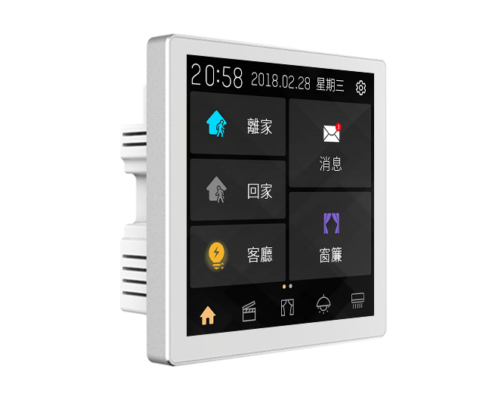

P-D-CTP4-W-ST
P-D-CTP4-B-BT

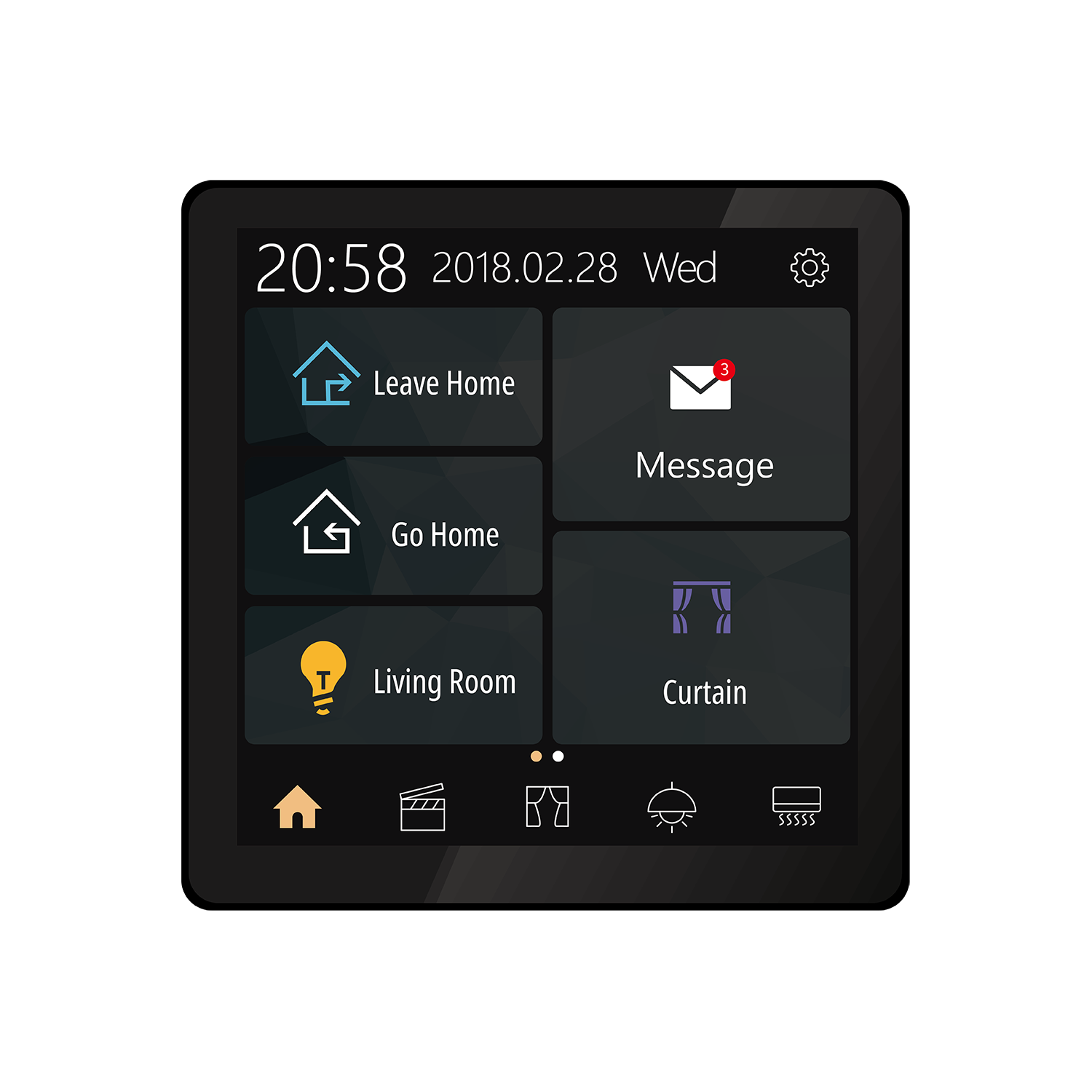

With the LCD Switch Panel which has a HD touch LCD screen, you can replace the light control, curtain touch panel and air condition control panel and achieve the centralized control system. Meanwhile, it supports situational mode control which enable users to have better intelligent experience.

商品カテゴリー: スマートパネル

性能特徴技術パラメータ配線図

Situation mode: Multiple situation modes can be configured, and users can customize it.
Lighting control: The lighting control can control the touch switch or the multi-way switch actuator.
Dimming control: can achieve dimming.
Toning control: can achieve toning.
Air conditioning control: multi-connection and fan coil control can be realized.
Curtain control: realize single track or double track control.
1 local relay
The screen saver function can achieve 30 seconds, 1 minute, 5 minutes, and constant light settings.
The screen brightness can be adjusted from 0-100%.
The buzzer volume can be adjusted from 0-100%.
Message review.
Remote upgrade.

Operating Voltage: AC 100V~240V
Operation Frequency: 50/60Hz
Standby mode power consumption: less than 4W
Switch Load: 5A/channel
Communication: Power Line Carrier (PLC)
Environment Temperature: -10°C~55°C
Environment Humidity: 10%RH~85%RH
